A 2 Minute Introduction to Sound Abstract Interpretation

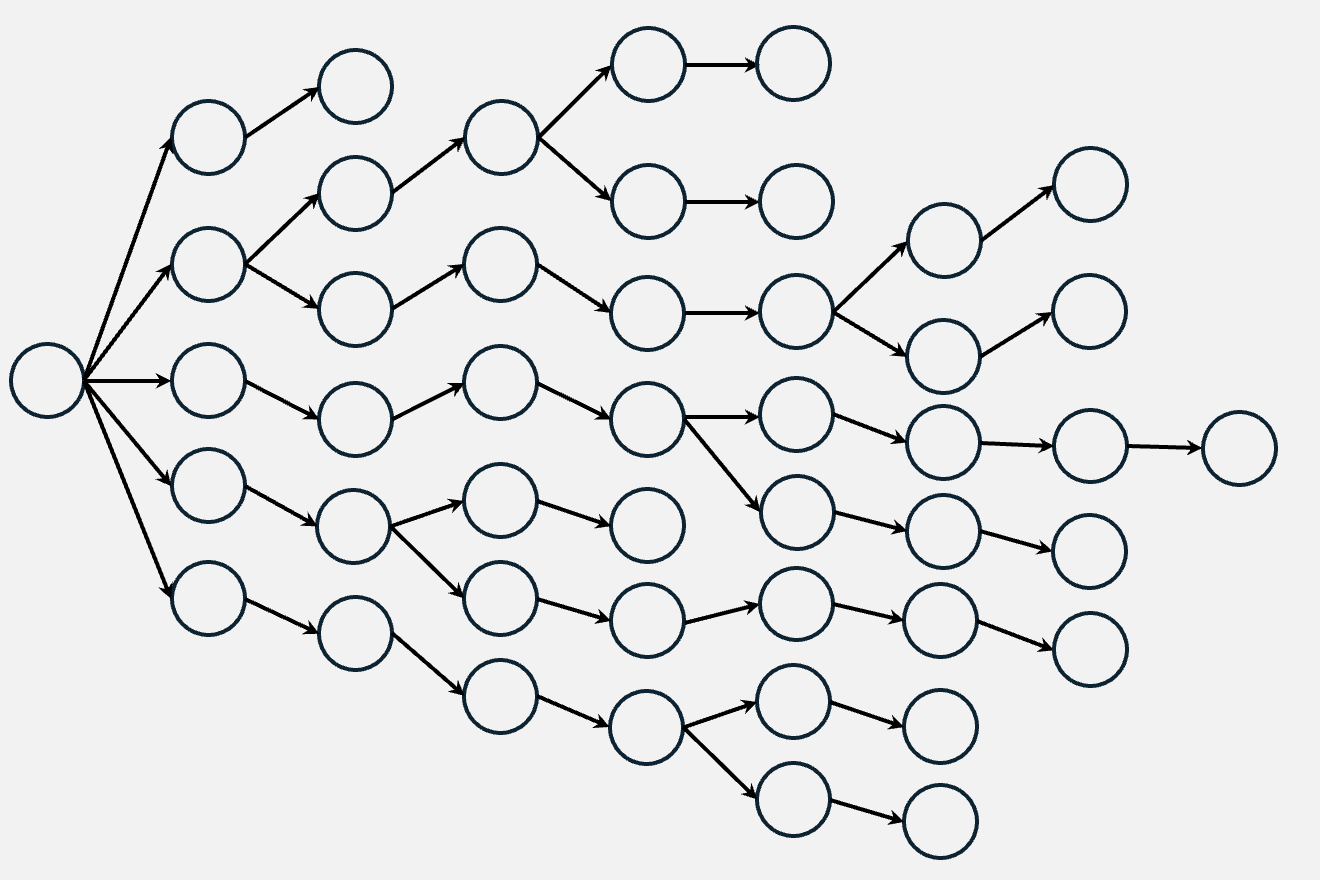

A trace of a program execution is the sequence of transitions of the program state:

trace

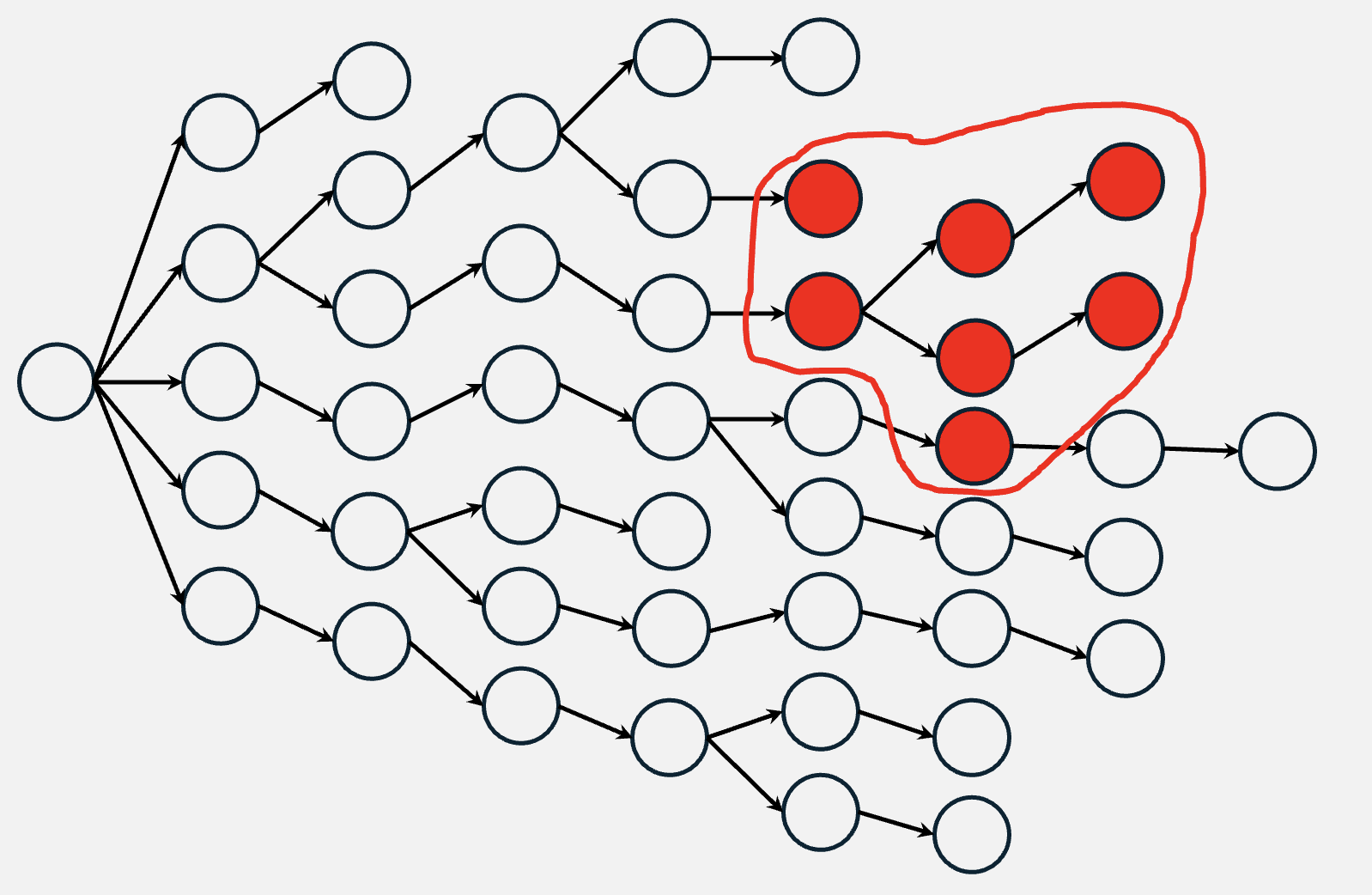

Errorneous states are just states that satisfy some property $P$:

error

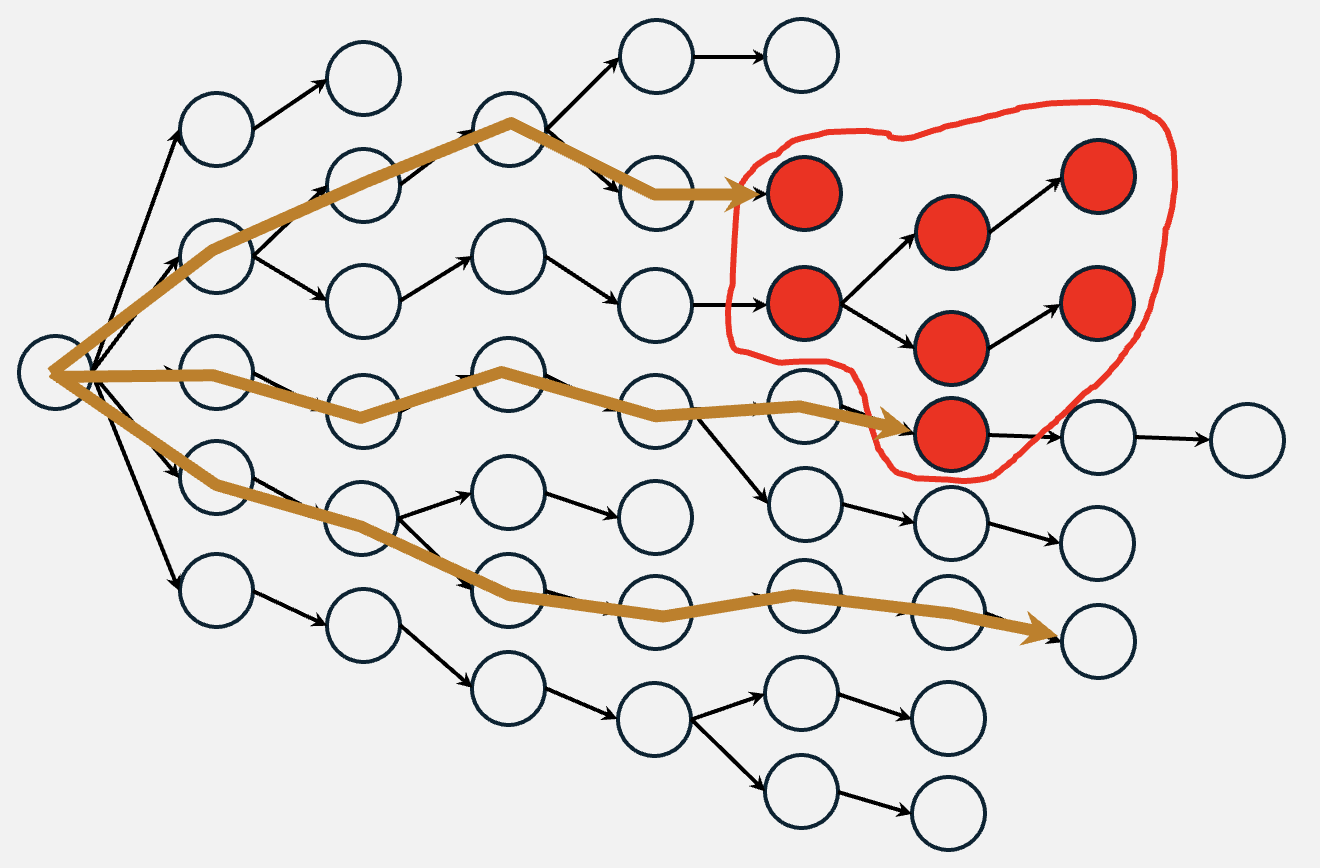

Testing may verify some traces if an error occurs:

testing

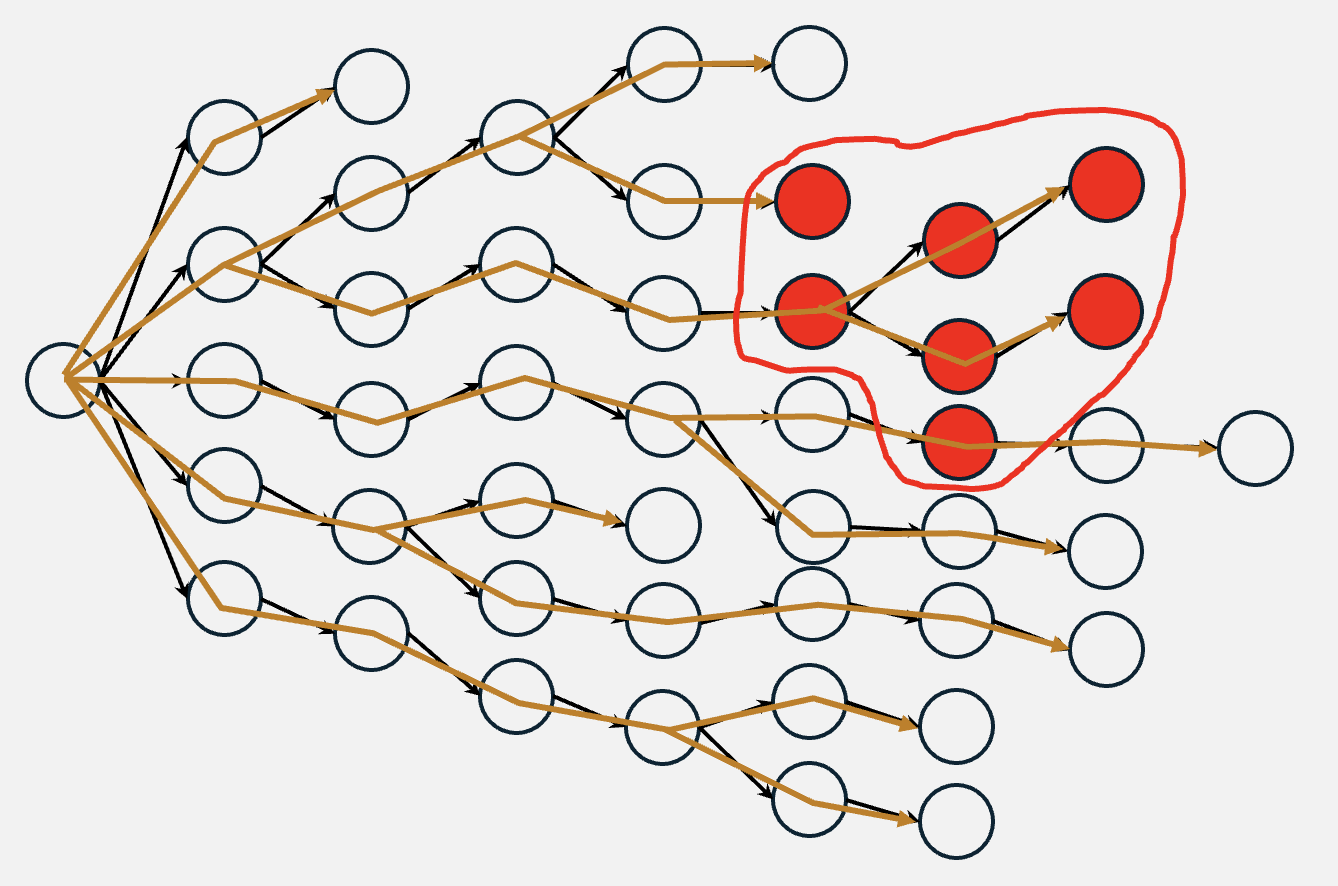

But checking all possible programs are impossible:

infinite traces

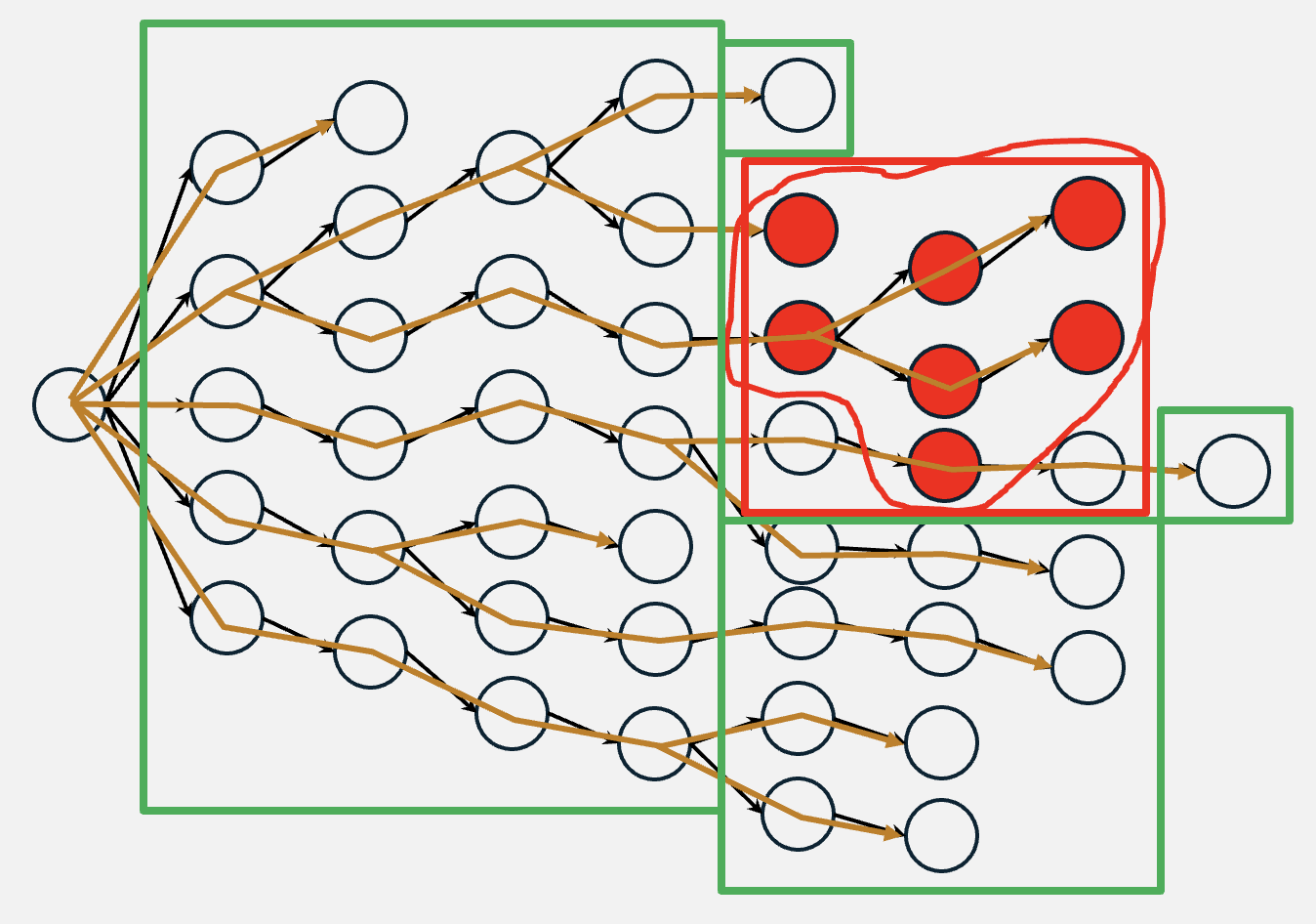

Abstract interpretation approximates the concrete states with a less precise approximation:

abstraction

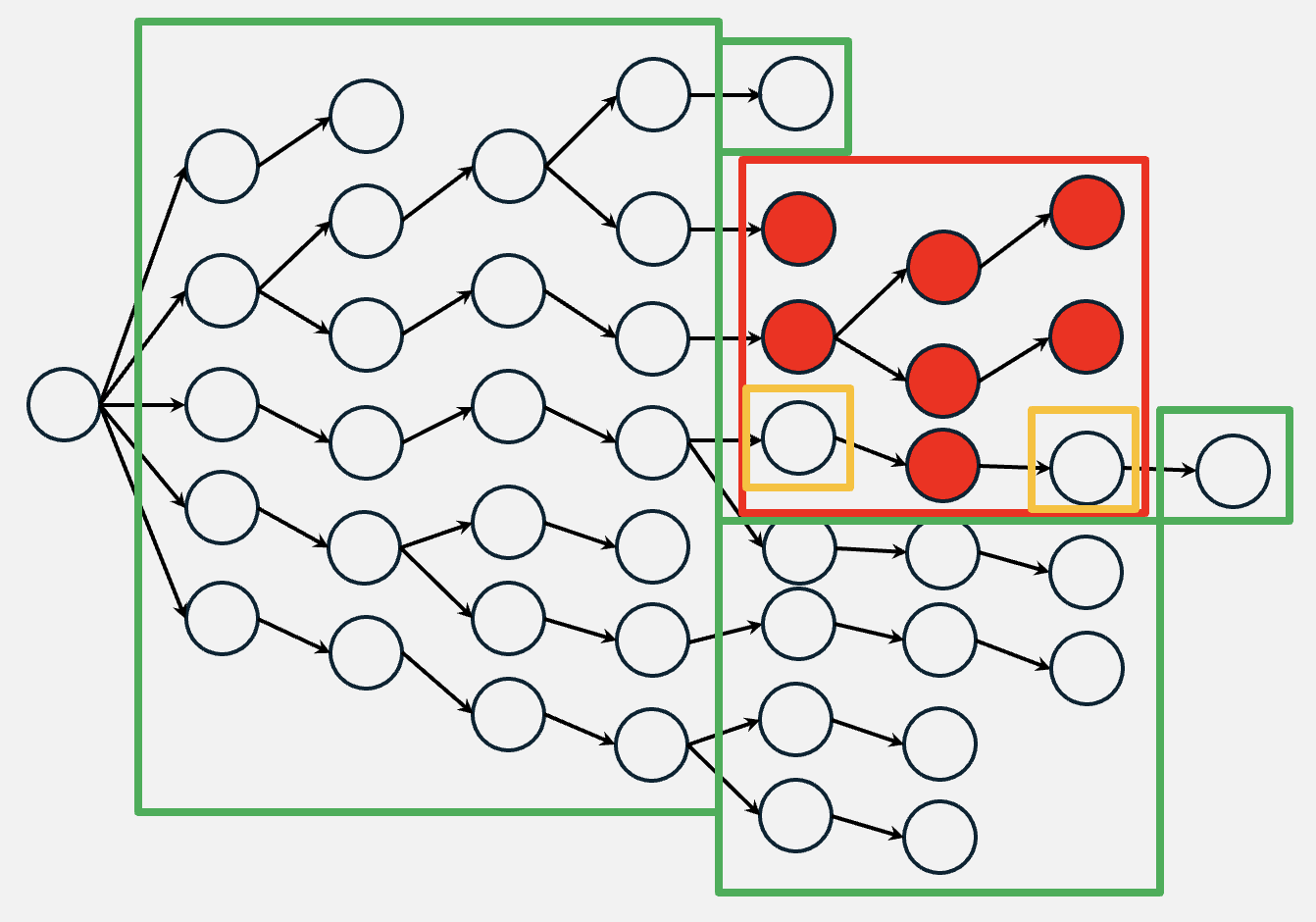

Since it’s an over-approximation, it may falsely identify safe states as errorneous:

false positive

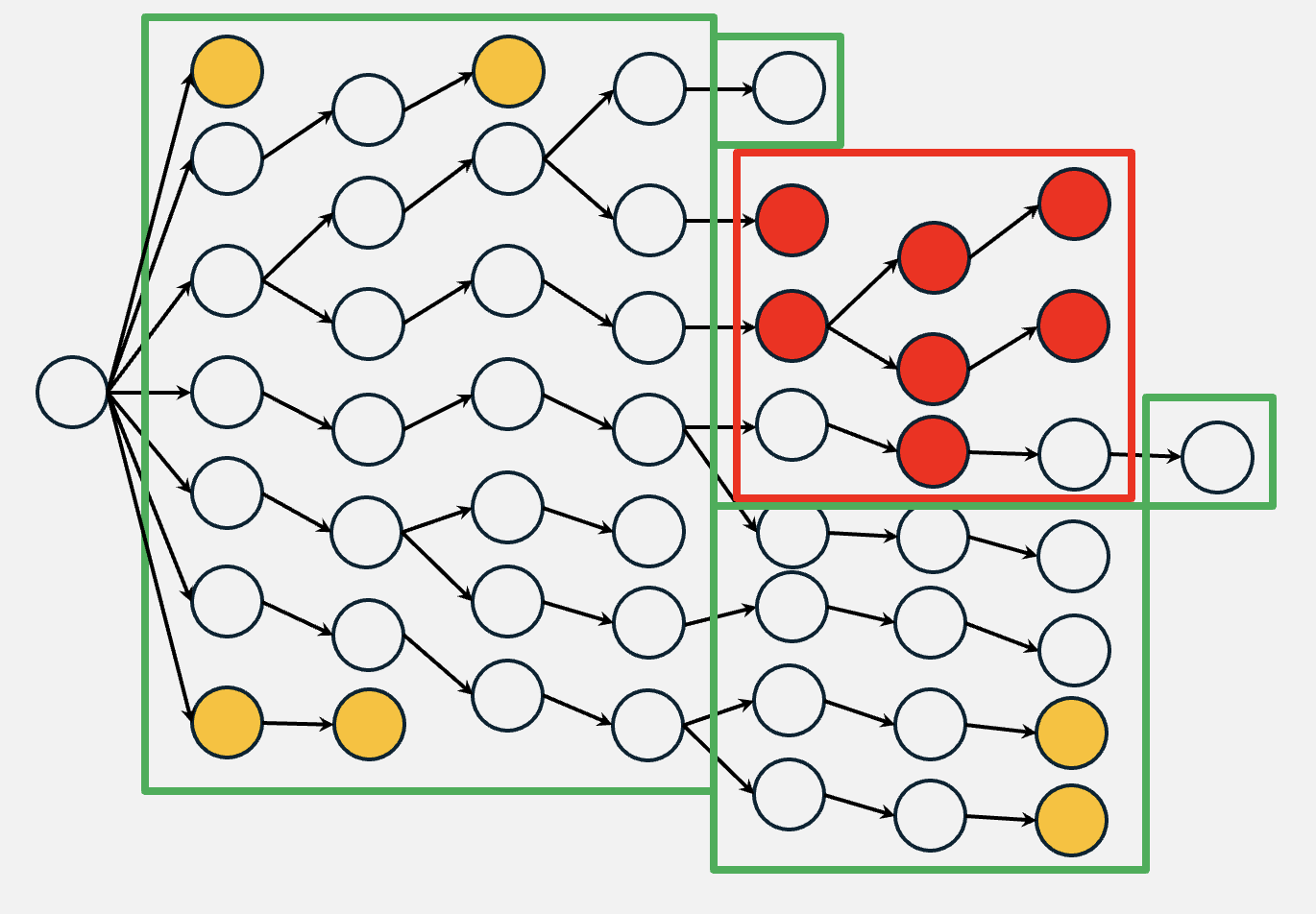

And additionally take into account states which would not actually be computed:

overapproximation

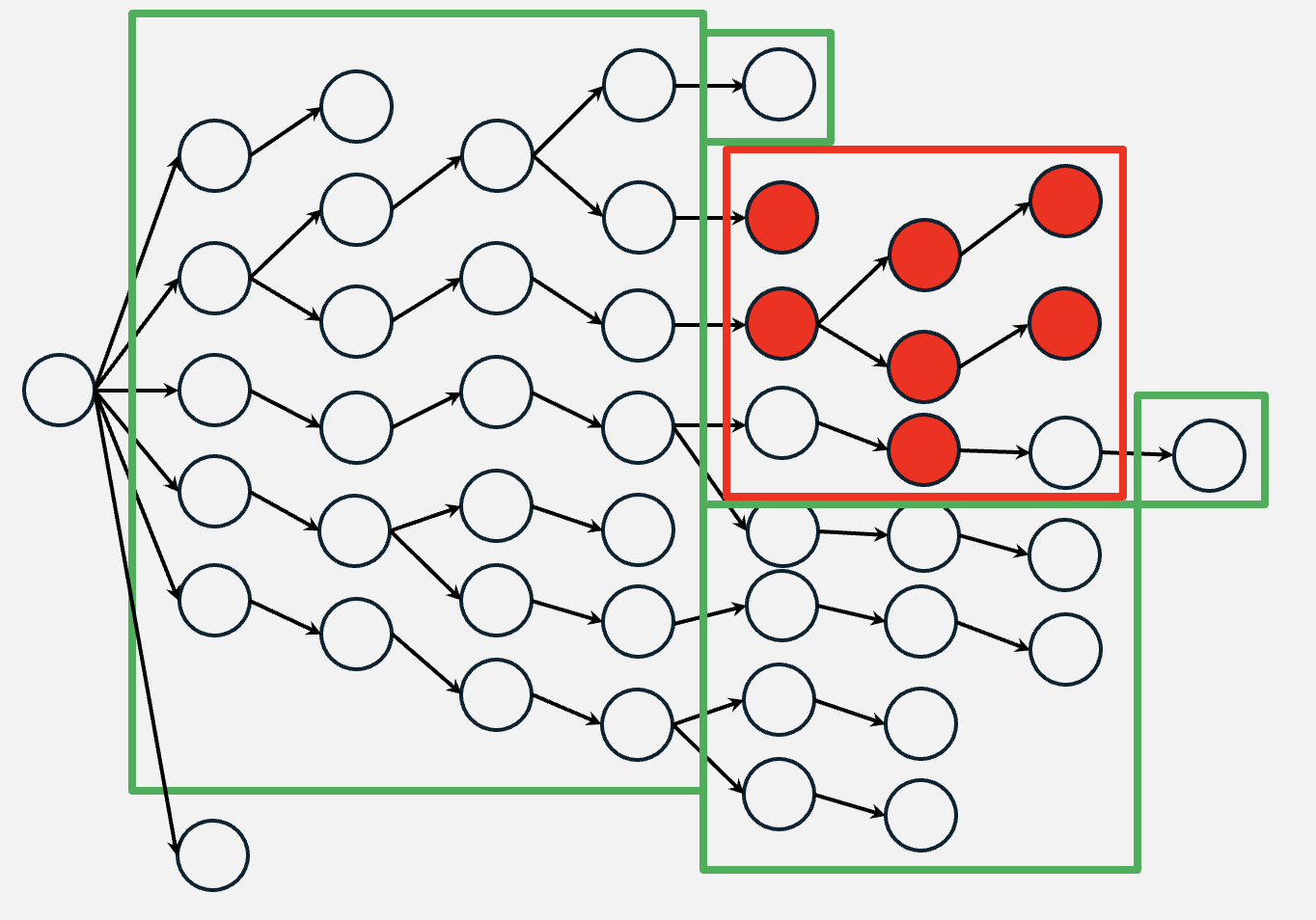

But it is a sound approximation, meaning it never not takes a concrete state into account:

sound

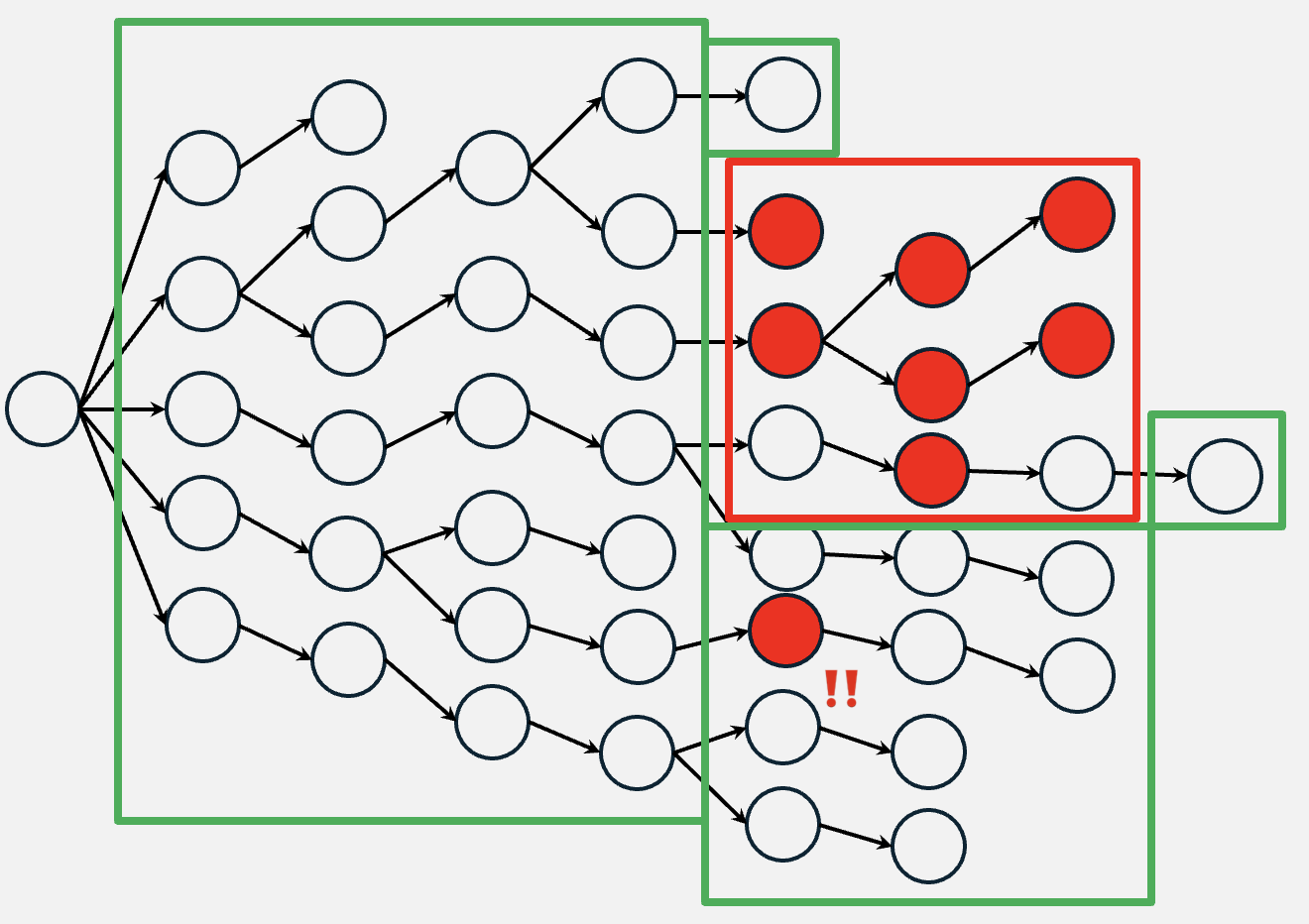

And all concrete errorneous states must be correctly abstracted into an errorneous abstract state:

sound_errors
